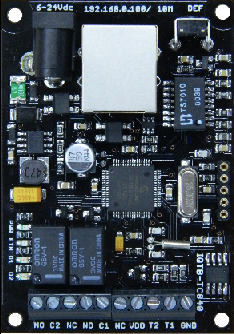

IQboard LAN

Smart power controlling board

IQboard LAN is smart home power controller for DYI users and service providers. Suitable for sites which require remote control power of electrical equipments with temperature or humidity log. Equipment’s power can be controlled from any reason such as freezing, time-based power control, overheating or other. Power can be controlled over WEB browser from PC, notebook, tablet or smartphone.

Highlights

  • Two controlled power outputs, on / off
  • Two sensor inputs – thermo / hygrometers
  • Dataloger
  • Scheduler and complex rules
  • Equitermic curve and differencial control
  • Control by WEB browser or SNMP
  • Built-in Passive PoE extractor
  • Extra low power consumption 1W

Solutions

IQboard was designed as power controlling plattform for DYI installations and small service providers. If you love playing with technical miracles or just need simple HW solution with robust software features for your service plattform, IQboard will serve you very long time for very affordable price.

Access from everywhere

Smart IQboard  can be simply controlled remotely from any WEB browser. Doesn’t matter if it’s PC, notebook, tablet or smarphone.

Monitoring

All generated events and other alarms can be sent over SNMP traps. IQboard generate alerts for management station to notify user about events.

Control different ways

Two power outputs can be controlled remotely by user, built-in scheduler, by static rules, by difference or by equitermic curve.

Expandable with sensors

Power controller support many optional sensors to monitor environment and generate actions and alarms. Supported are external sensors like temperature and humidity.

Technical parameters

Input power socket 12V DC +- 20%, or Passive Poe 6 – 36Vst
Power consumption 1W
Output power socket 2x Relays, 30v DC, 1A max (resistive or inductive)
Data interfaces 1 x Ethernet 10BaseT UTP
2 x IQbus, 1-Wire DS18B20
Control Internet browser, SNMP v1.0
Configuration Internet browser
Monitoring Internet browser
SNMP
XML
Indicators PWR: red LED
ETH: green LED
01: yellow LED, power output1
02: yellow LED, power output2
Security Web admin user/pass
SNMP communities
Dimensions 72 x 50 mm
Weight 35g
Operation humidity max. 80%, non-condensing
Operation temperature -20 to +70°C

Product features

  • Two controlled power outputs, on / off
  • Two sensor inputs – thermo / hygrometers
  • Thermostat and hygrostat feature
  • Control by WEB browser or SNMP
  • Scheduled control
  • Sensor values difference control
  • User rules control
  • Control by equitermic curve
  • Monitoring temperature and humidity by WEB browser
  • Dataloger – history of temperature and humidity
  • Collecting data from sensors over SNMP
  • Built-in Passive PoE extractor
  • Extra low power consumption 1W
  • SNMP v 1.0
  • XML support
  • optional DIN rail mounting
  • Alerts by SNMP traps
  • Security – web admin account
  • Firmware upgradable
