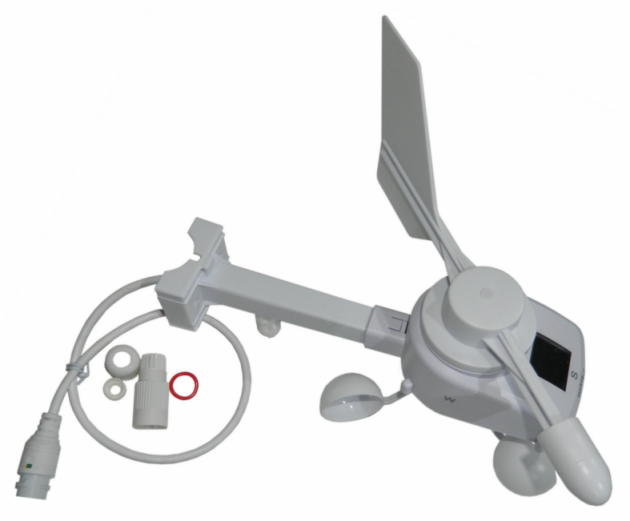

LAN IP Weather Station

IQWS-4000 is a weather station with STORM detector and ethernet interface and embedded WEB server. Supported M2M communication protocols include SNMP, UDP and HTTP get. Unique features include:

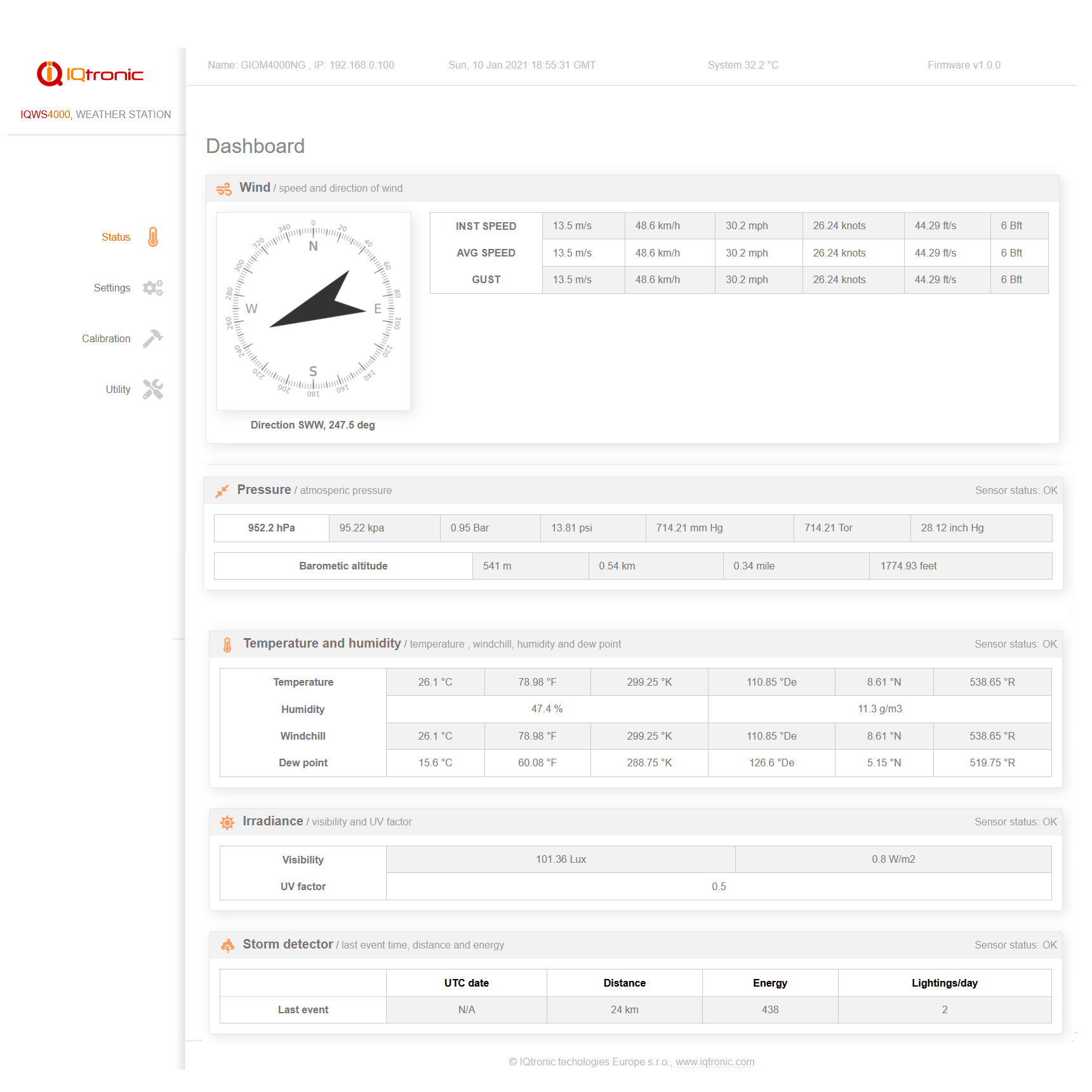

  • M2M protocol compatibility with previous model GIOM 3000 ● Compact size and clean design (IQtronic proprietary TCPIP stack) ● High sensors accuracy ● Passive Power over Ethernet (PoE) with LED indication and up to 48V range with class A surge protection ● Reset to Default button ● Detachable sunshield of TH sensor ● Modern, simple and responsible WEB user interface.

Measured quantities:

Wind speed – instantaneous, average and gust ● Wind direction ● Beaufort ● Windchill ● Humidity – relative, absolute ● Dewpoint ● Absolute or relative pressure ● Sunlight intensity ● UV factor ● Lightning strikes distance detector with last event logging including time.

Technical specifications – range and accuracy:

Wind Speed:                   0 to 180 km/h (0 to 50m/s)

Resolution                   0.1 m/s

Detection threshold       0.7 m/s

Measurement method   mechanical, contactless/HAL sensor, mHz out

Accuracy                     5%

Time interval               1 – 10 seconds, depend on speed

Wind Direction                16 positions, 360°

Resolution                   22.5°

Measurement method   Optical INFRA ENCODER,  950nm wavelength

Temperature                  -40 to 120° C

Resolution                   0.1 °C

Accuracy                     +/- 0.1 °C

Relative Humidity            0 to 100 %

Resolution                   0.1 %

Accuracy                     +/- 1.5%

Absolute Pressure            300 to 1200hPa

Resolution                   0.1 hPa

Accuracy                     0.01 bar (0.1m)

Sunlight Intensity            0 to 1050 W/m2  (460 – 940 nm), uncalibrated

Resolution                   0.1

Accuracy                     10%

UV factor                       0 to 20 (300 – 400 nm), uncalibrated

Resolution                   0.1

Accuracy                     0.5

Lightning detector            0 to 40km

Resolution                   1km



Refresh Interval              1-10 seconds

Dimensions                     250 x 277.6 x 77.9 mm

Power supply                  12V/60mA (12V recommended, range 6 – 48V)

Interface                     Passive Power over Ethernet (PoE)

Operation Temperature    -30 to +60 °C

Ethernet connection         Weatherproof RJ-45 junction with LED indication of

power and activity on 0.3 m CAT6 cable



Ethernet                         10/100M compatible

Default IP                       192.168.0.100

Measurement units          metric, imperial
